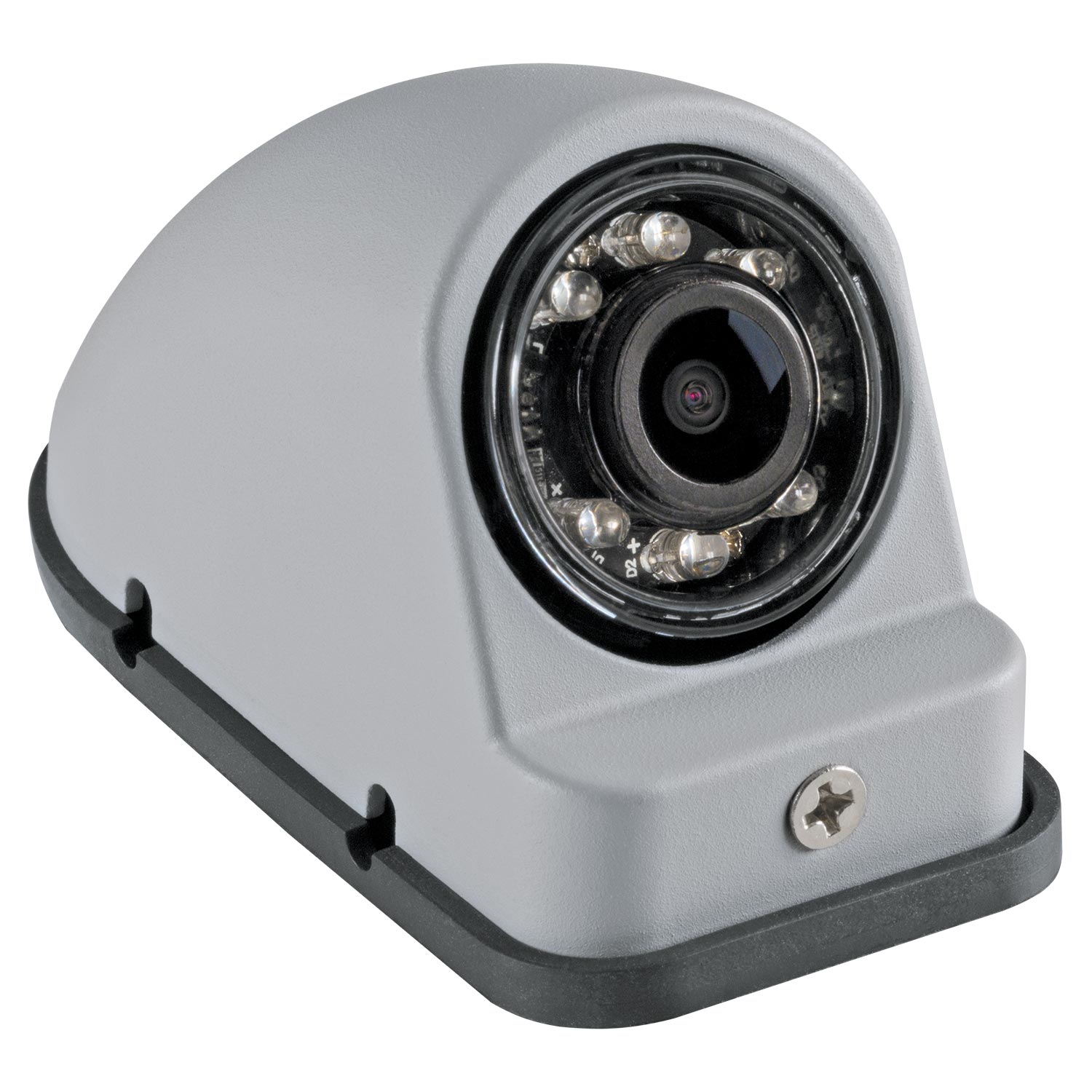

Voyager
VCMS50TGP
Support Topics
Documents & DownloadsDocuments & Downloads
Web Photo
Product Specifications
Select View:
- General
Overall Dimensions
1.08" x 1.05" x 1.05"
Camera Type
CMOS
Position On Vehicle
Side
Power System
12VDC
Video Output Signal
NTSC
Shutter Type
Electronic Iris
Image Orientation
Normal/Mirror
Waterproof Rating
IPX6
Viewing Angle (Degrees)
•78° diagonal, 65° horizontal, 49° vertical angle of view
Sensor Size (Inches)
1/4"
Weight
1
