Jensen Heavy Duty
JXHD54
Support Topics
Documents & DownloadsDocuments & Downloads
Literature
LIT-JXHD54.pdf

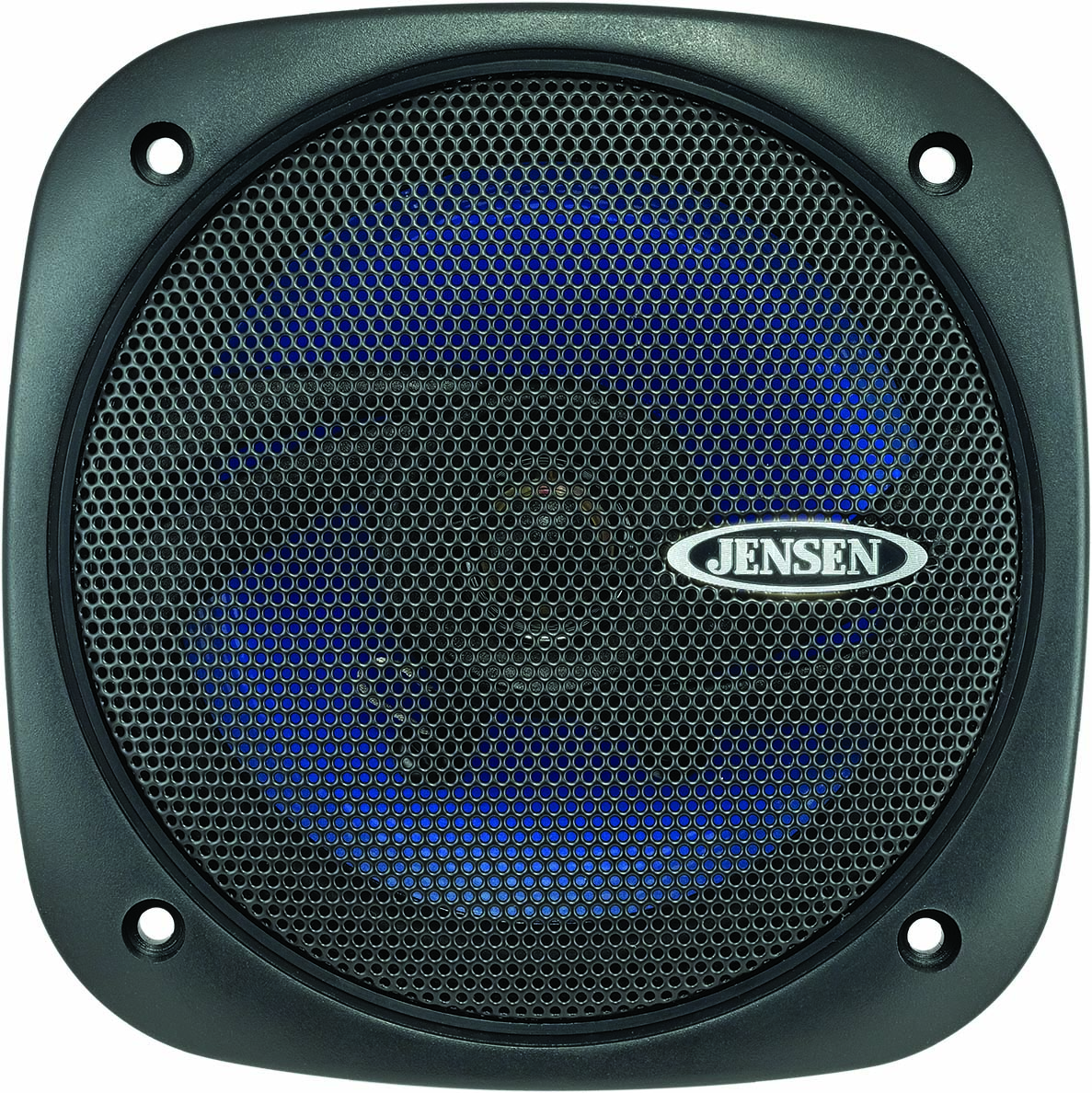

pic - JXHD54.jpg

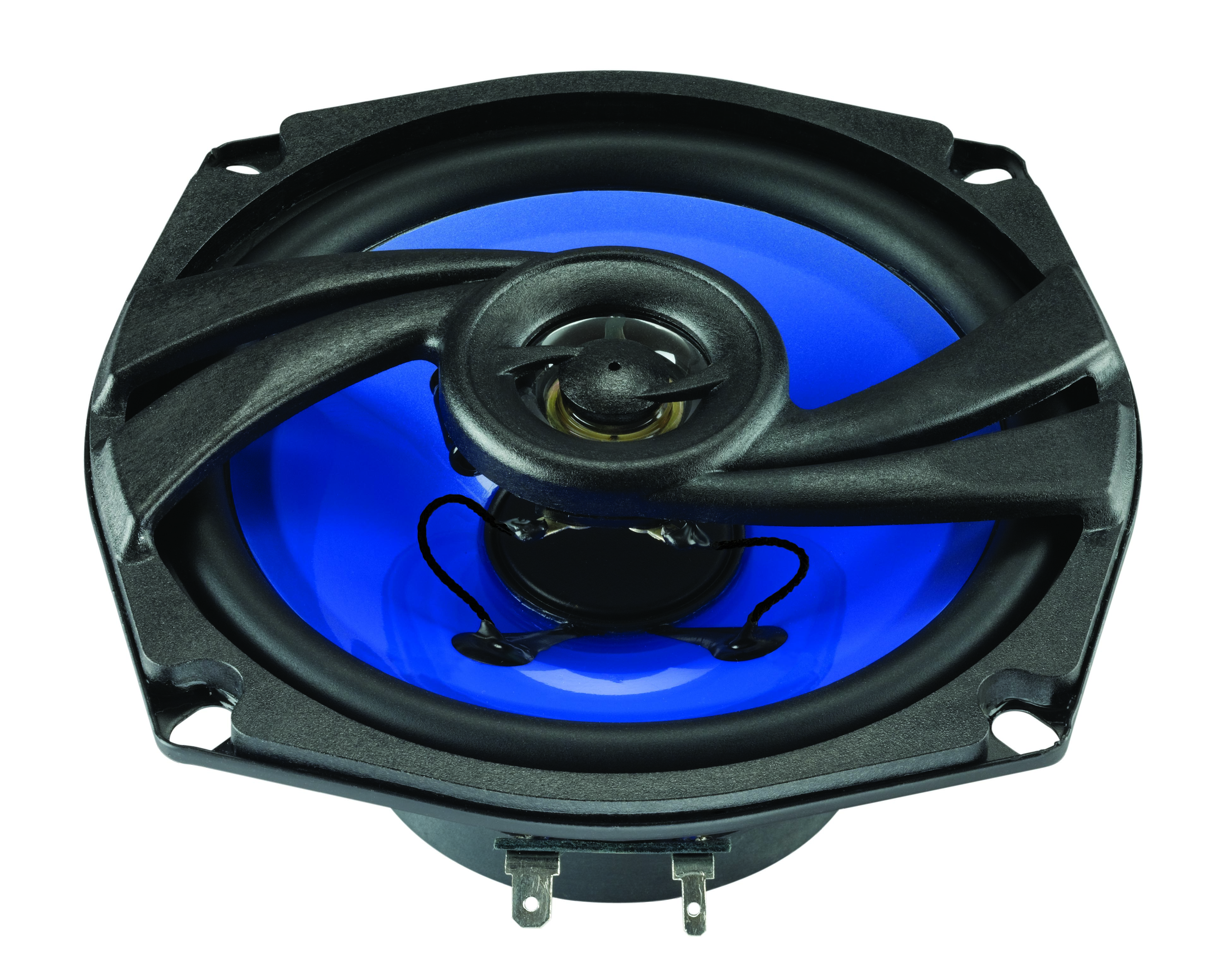

Pic - JXHD54 no grille.jpg
JXHD54.jpgWeb Photo
Product Specifications
Select View:
- General
Nominal Impedance (Ohms)
4
Grill Diameter (Inches)
5-1/2
Mounting Hole Diameter (Inches)
5
Mounting Depth (Inches)
2.3
Sold As
Individual
Tweeter Type
Dome
Tweeter Material
Mylar
Polypropylene Woofer Cone
Yes
Sensitivity @ 1W/1 Meter (dB)
84
ASTM B117 Compliant
No
Magnet Weight (Ounces)
11
Waterproof Rating
Yes
Color
Black
Frequency Response (Hz-kHz)
65-20
Maximum Power Handling (Watts)
135
ASTM D4329 Compliant
No
Weight
1
