Jensen
JWMS437
Support Topics
Documents & DownloadsDocuments & Downloads
JWMS437.pdf

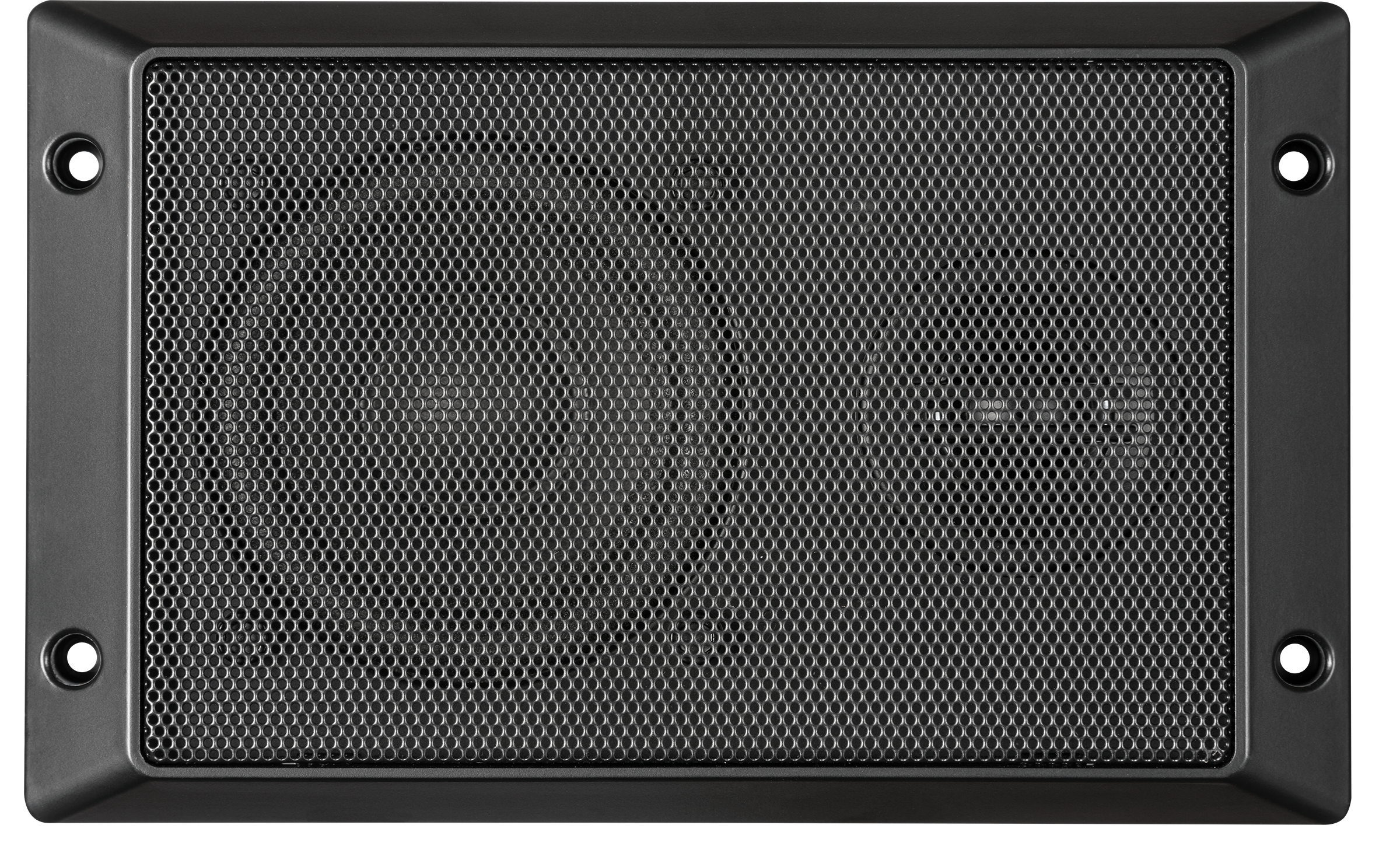

JWMS437 SPKR.pngProduct Specifications
Select View:
- General
Overall Dimensions
7”W x 4.37”H x 2.4”D
Nominal Impedance (Ohms)
4
Mounting Hole Diameter (Inches)
2.75
Mounting Depth (Inches)
1.6
Sold As
Individual
Tweeter Material
Mylar
Sensitivity @ 1W/1 Meter (dB)
84
Magnet Weight (Ounces)
5.4
Color
Black
Frequency Response (Hz-kHz)
70 Hz - 20 KHz
Maximum Power Handling (Watts)
12W
Weight
1
